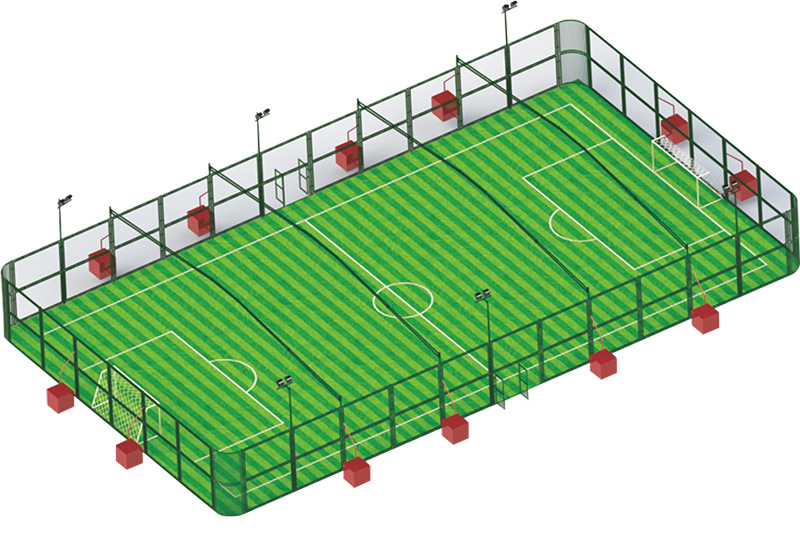

Movable play area
![Football Cage Movable play area](https://www.groundtrampolines.com/images/products/football-cage-movable-play-area-1.jpg)
![Football Cage Movable play area](https://www.groundtrampolines.com/images/products/football-cage-movable-play-area-2.jpg)
![Football Cage Movable play area](https://www.groundtrampolines.com/images/products/football-cage-movable-play-area-3.jpg)

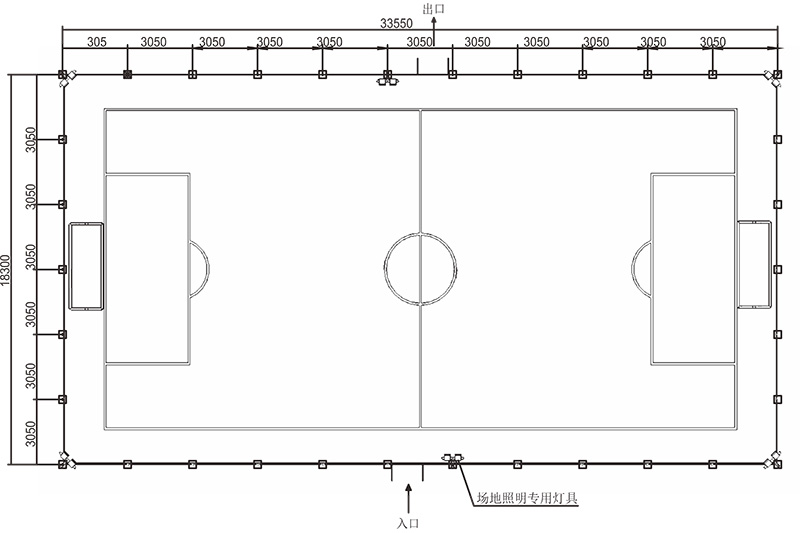

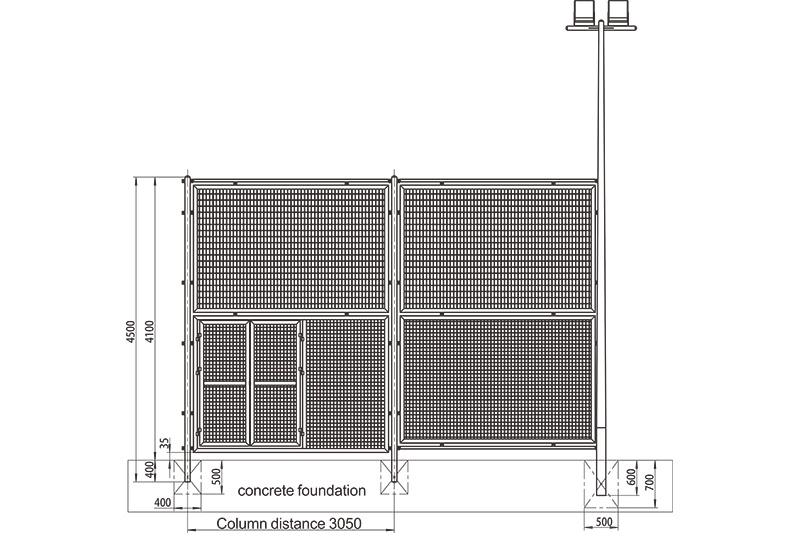

Technical parameter
Site size: 33.5m*18.3m
Column size (diameter * wall thickness) : 76*3.0mm/114*3.0mm
Lamp post size (diameter * wall thickness) : 114*3.0mm
Seine frame profile specifications: transverse column: 40 ×60 ×3.0mm
Seine beam profile specification: 40*40*3mm
Mesh: welded mesh/galvanized mesh
Total height of Seine ground: 4m
Lamppost ground height: 6m (customizable)
Column spacing: 3m
Factory parts: Seine frame, column (optional: lamp post), beam, lamp (one column single lamp/one column double lamp)
Color choice: dark green

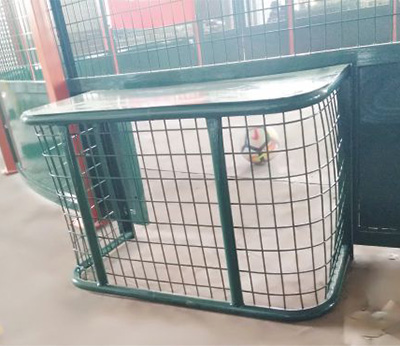

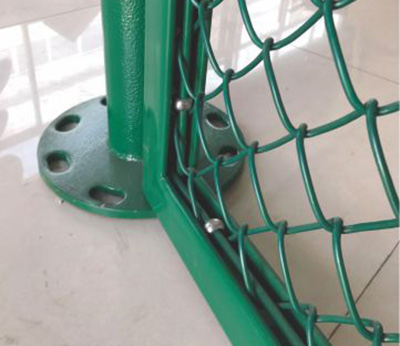

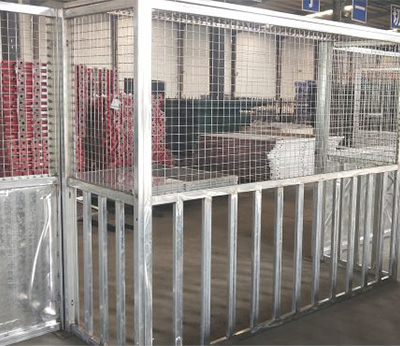

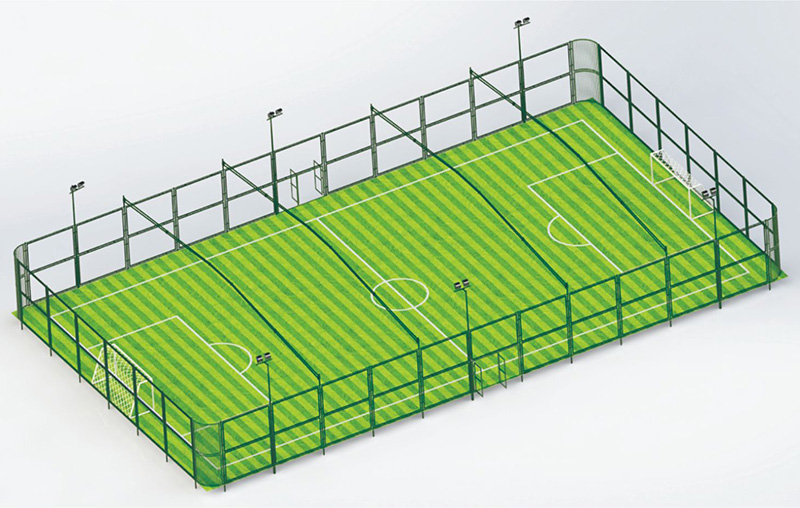

Round corner - Welded mesh + Galvanized mesh
![Football Cage Round corner](https://www.groundtrampolines.com/images/products/football-cage-round-corner.jpg)
![Football Cage Round corner](https://www.groundtrampolines.com/images/products/football-cage-round-corner-1.jpg)
![Football Cage Round corner](https://www.groundtrampolines.com/images/products/football-cage-round-corner-2.jpg)
![Football Cage Round corner](https://www.groundtrampolines.com/images/products/football-cage-round-corner-3.jpg)
![Football Cage Round corner](https://www.groundtrampolines.com/images/products/football-cage-round-corner-4.jpg)
Site characteristics
1. This cage-type football field adopts the frame beam connection mode, which has the advantages of fast and convenient installation. The frame, beam, column and door can be made according to customer needs, and the splice installation can be quickly completed on the construction site.
2. The cage foot adopts the structure of the upper hook mesh and the lower welding mesh, which effectively reduces the cost and improves the overall strength.
3. The corner of the venue is very smooth to make the venue more beautiful and improve safety.
4. The customer can choose whether to add the top net. By adding the top beam, the top net can be laid. The top net is made of nylon rope.
5. The lighting system of this site can choose one column of single light and one column of double light, which can effectively ensure the lighting of the site at night.
6. The ground pavement can use artificial lawn and suspended floor (with a variety of colors) two structures to improve the user experience in many ways.

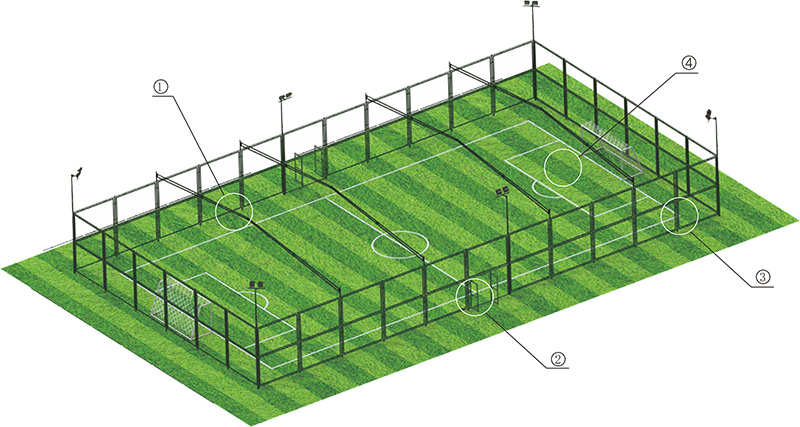

Fixed play area
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area.jpg)
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area-1.jpg)

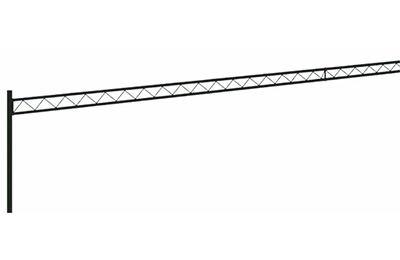

NO.1-Crossbar
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area-2.jpg)

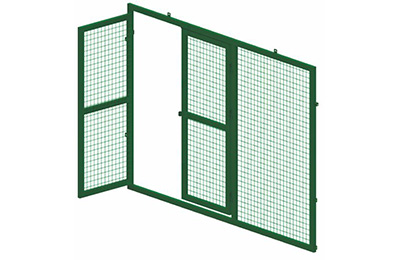

NO.2-DOOR
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area-4.jpg)

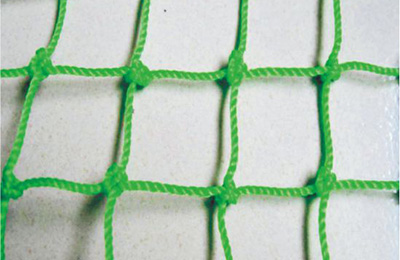

Top net
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area-5.jpg)

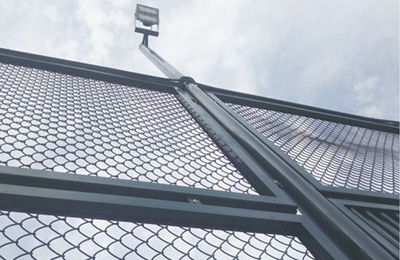

Lamp-post
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area-6.jpg)

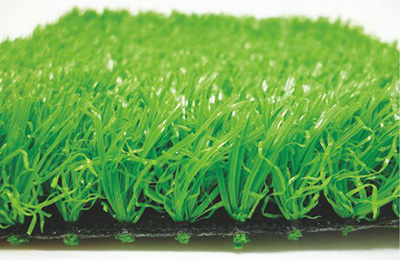

NO.4-Turf
![Football Cage Fixed play area](https://www.groundtrampolines.com/images/products/football-cage-fixed-play-area-3.jpg)

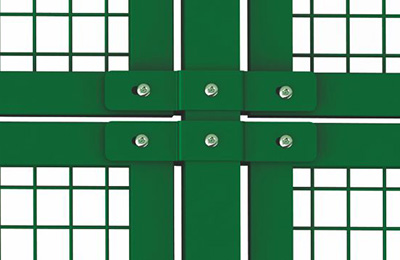

NO.3-Mesh frame column connection

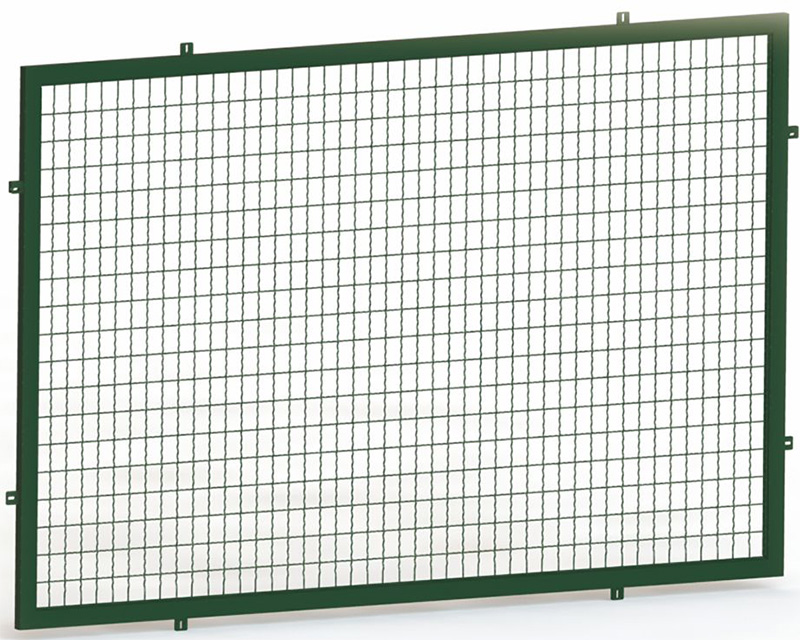

The Woven Mesh Fence
![Football Cage The Woven Mesh Fence](https://www.groundtrampolines.com/images/products/football-cage-the-woven-mesh-fence.jpg)
Size: 2880*1880*40mm
Weight of the whole mesh: 61kg
Pipe size: Square tube 40 x 60 x 3.0mm
Pipe material: High quality carbon steel mesh
Mesh material: With 5mm cold-drawn wire, mesh 60×80
Tube material mesh fixing method: Welded in the middle of the inside of the frame
Mesh advantage: Beautiful structure, durable, impact resistance, deformation recovery ability
![Football Cage The Woven Mesh Fence](https://www.groundtrampolines.com/images/products/football-cage-the-woven-mesh-fence-1.jpg)

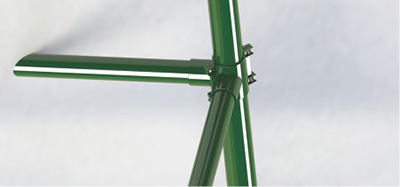

Right Angle assembly
![Football Cage The Woven Mesh Fence](https://www.groundtrampolines.com/images/products/football-cage-the-woven-mesh-fence-2.jpg)

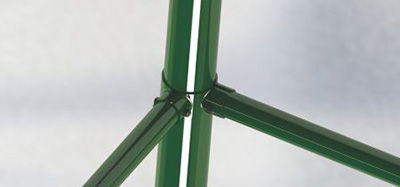

Right Angle assembly
![Football Cage The Woven Mesh Fence](https://www.groundtrampolines.com/images/products/football-cage-the-woven-mesh-fence-3.jpg)

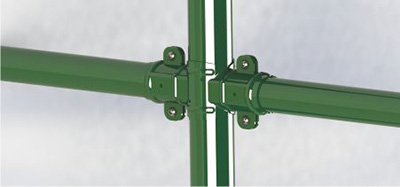

Parallel assembly
![Football Cage The Woven Mesh Fence](https://www.groundtrampolines.com/images/products/football-cage-the-woven-mesh-fence-4.jpg)

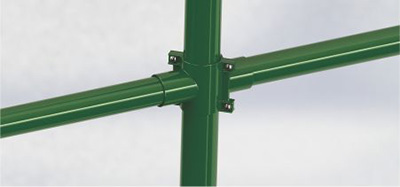

Parallel assembly

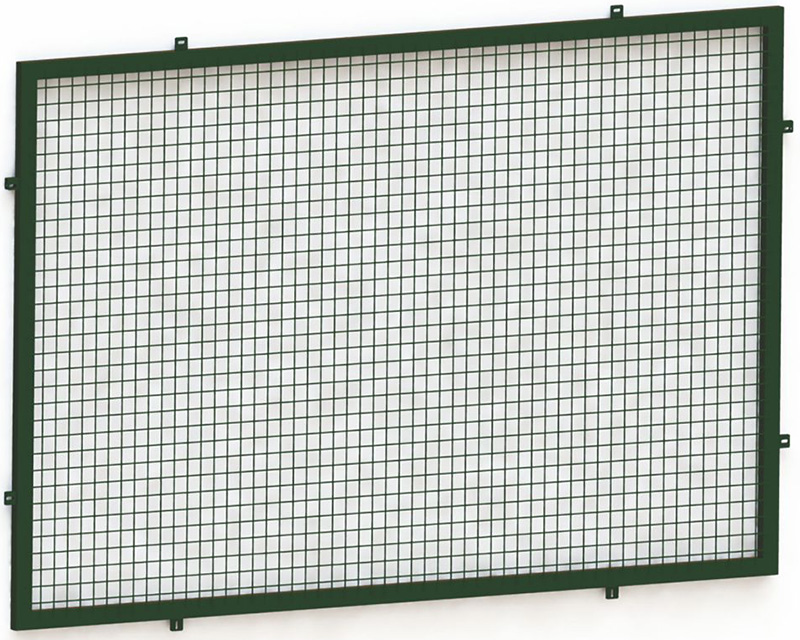

Welding Mesh
![Football Cage Welding Mesh](https://www.groundtrampolines.com/images/products/football-cage-welding-mesh.jpg)
Size: 2880*1880*40mm
Weight of the whole mesh: MEN99kg
Pipe size: Square tube 40 x 60 x 3.0mm
Pipe material: High quality carbon steel mesh
Mesh material: With 5mm cold-drawn wire, mesh 50×50
Tube material mesh fixing method: Welded in the middle of the inside of the frame
Mesh advantage: Wire and wire welding firm, uniform mesh, flat mesh surface, corrosion resistance, high strength, strong protection ability
![Football Cage Welding Mesh](https://www.groundtrampolines.com/images/products/football-cage-welding-mesh-1.jpg)

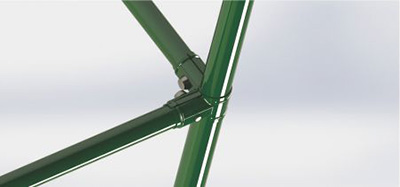

Right Angle assembly
![Football Cage Welding Mesh](https://www.groundtrampolines.com/images/products/football-cage-welding-mesh-2.jpg)

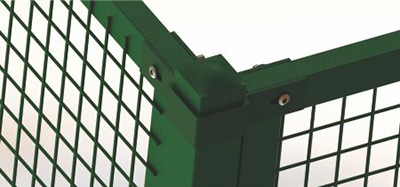

Right Angle assembly

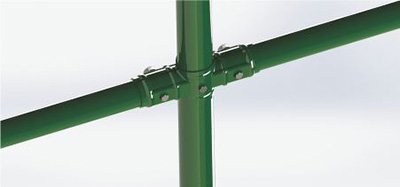

![Football Cage Welding Mesh](https://www.groundtrampolines.com/images/products/football-cage-welding-mesh-3.jpg)
Parallel assembly
![Football Cage Welding Mesh](https://www.groundtrampolines.com/images/products/football-cage-welding-mesh-4.jpg)

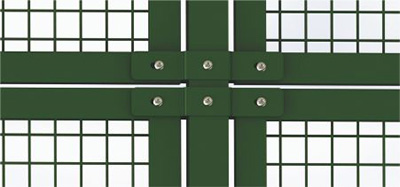

Parallel assembly

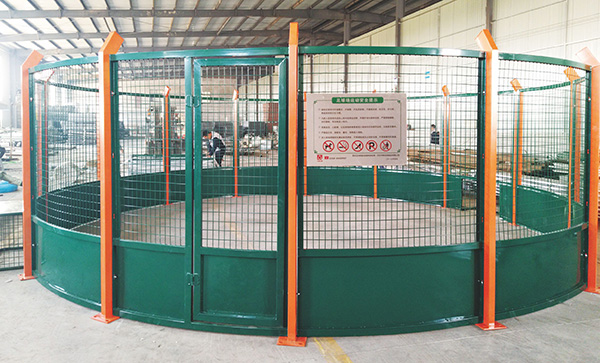

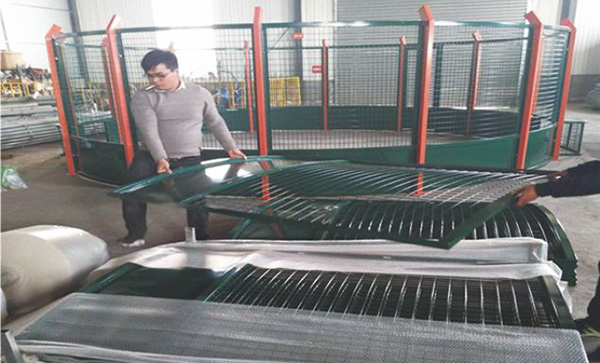

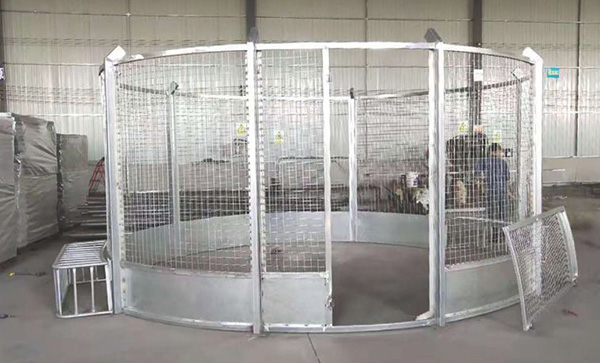

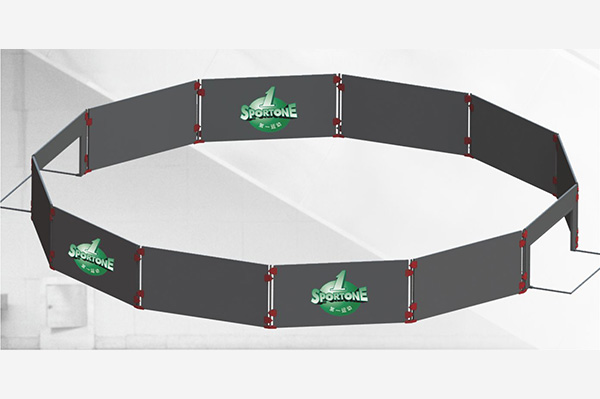

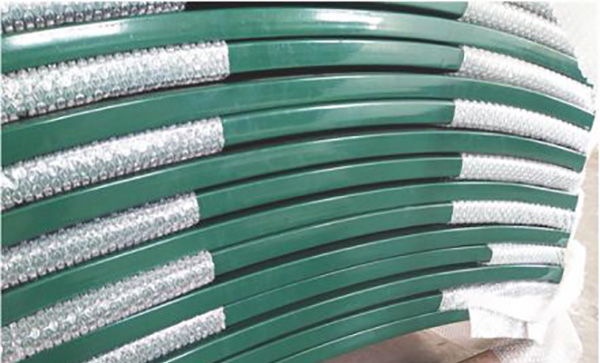

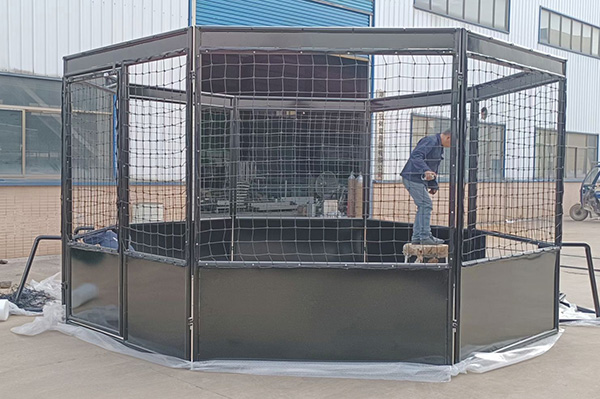

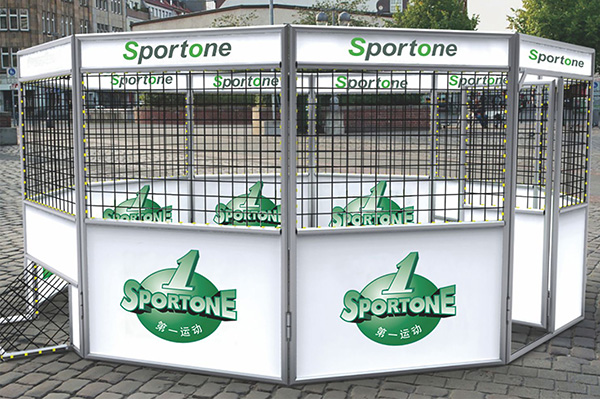

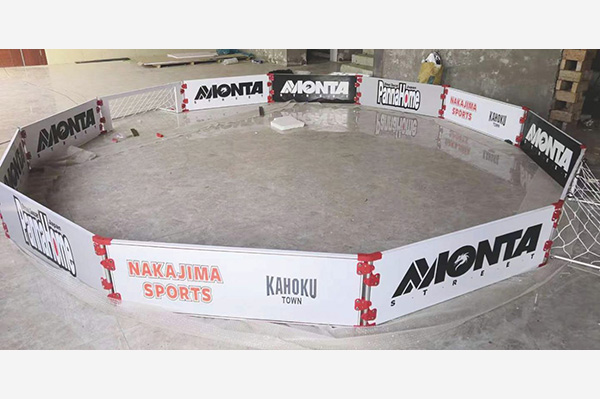

Round play area
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-1.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-2.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-3.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-4.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-5.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-6.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-7.jpg)
![Football Cage Round play area](https://www.groundtrampolines.com/images/products/football-cage-round-play-area-8.jpg)
Floating assembly floor
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-1.jpg)

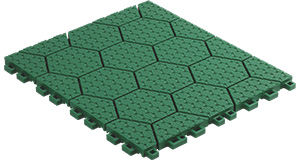

F1 MODULAR SPORTS FLOORING
400mm×350mm×16mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-2.jpg)
U3 MODULAR SPORTS FLOORING
333mm×333mm×16mm

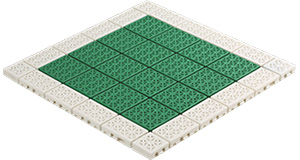

![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-3.jpg)
U3 MODULAR WHITH LINE
333mm×50mm×16mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-4.jpg)

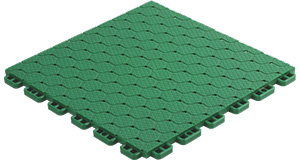

F13 MODULAR SPORTS FLOORING
305mm×305mm×13mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-5.jpg)

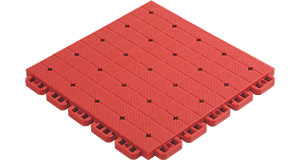

STE MODULAR SPORTS FLOORING
250mm×250mm×20mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-6.jpg)

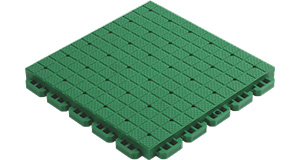

STE MODULAR SPORTS FLOORING
250mm×250mm×16mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-7.jpg)

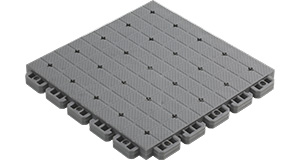

STE MODULAR SPORTS FLOORING
250mm×250mm×13mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-8.jpg)

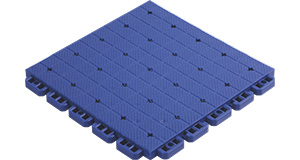

STE MODULAR SPORTS FLOORING
250mm×250mm×10mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-9.jpg)

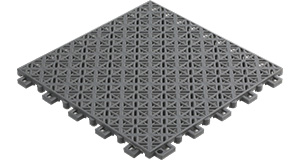

B2 MODULAR SPORTS FLOORING
305mm×305mm×14mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-10.jpg)

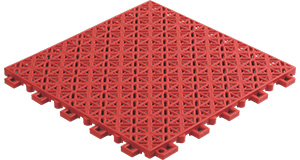

B1 MODULAR SPORTS FLOORING
305mm×305mm×14mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-11.jpg)

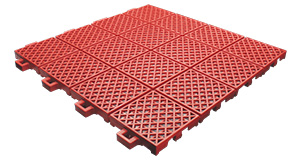

S34 MODULAR SPORTS FLOORING
340mm×340mm×15.8mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-12.jpg)

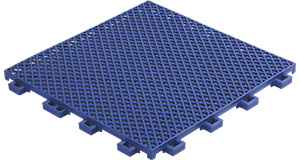

S30 MODULAR SPORTS FLOORING
305mm×305mm×15.8mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-13.jpg)

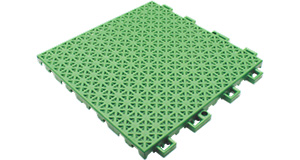

S25 MODULAR SPORTS FLOORING
250mm×250mm×16mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-14.jpg)

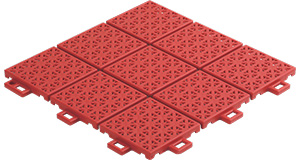

U2 MODULAR SPORTS FLOORING
250mm×250mm×12.5mm
![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-15.jpg)

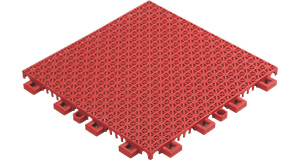

M4 MODULAR SPORTS FLOORING
250mm×250mm×12mm

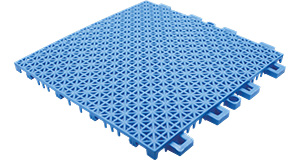

![Floating assembly floor](https://www.groundtrampolines.com/images/products/floating-assembly-floor-16.jpg)
M3 MODULAR SPORTS FLOORING
250mm×250mm×12.5mm
