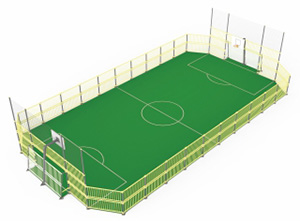

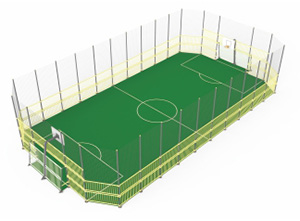

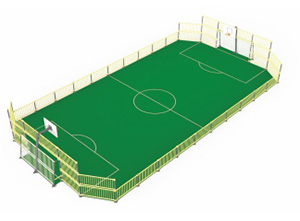

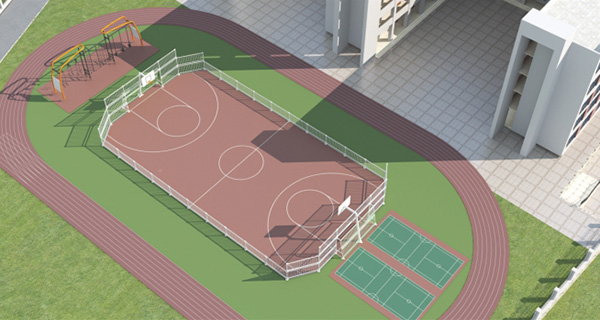

Technical data sheet
- main structure made of hot dip galvanized steel Φ89mm round pipes 3mm thickness with powder coating finish
- one-piece welded hot dip galvanized steel multi game goals
- side fences filling with 2x1m steel panels made of vertical et horizontal welded spot by spot cross bars
- multi directional connection flange with vandal proof fasteners
- Aluminum connector
Sports equipment
- Multi game (handball, soccer, basketball) goals
- Backboard position can be adjusted
- 5 height adjustable multigame net for volleyball, tennis and badminton practice

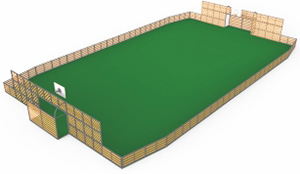

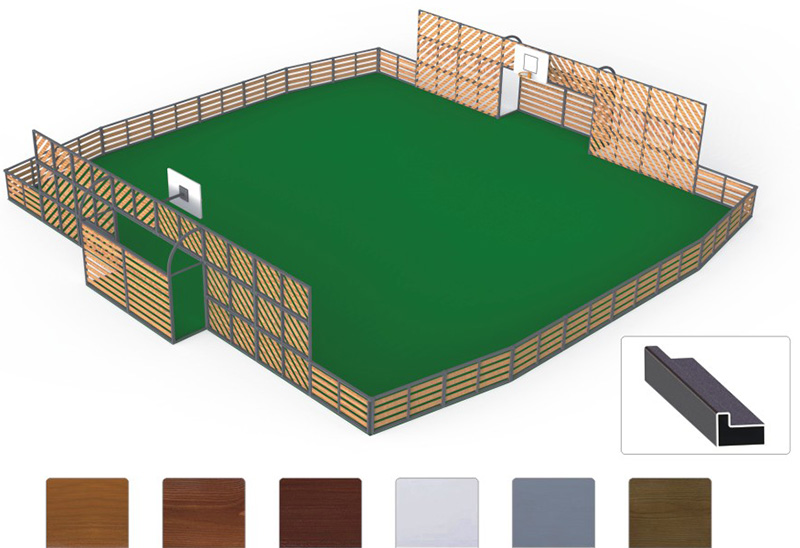

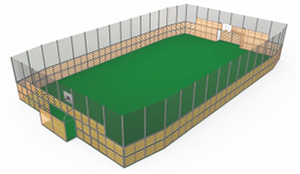

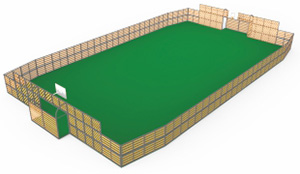

Technical data sheet
- main structure made of hot dip galvanized steel Φ89mm round pipes 3mm thickness with powder coating finish
- One-piece welded hot dip galvanized steel multi game goals
- Side fences framework made of Custom L-shaped pipe welded square pipe
- Wood composite (from recycling) slats 27x100mm with textured surface finish
Sports equipment
- Multi game (handball, soccer, basketball) goals
- Backboard position can be adjusted
- 5 height adjustable multigame net for volleyball, tennis and badminton practice
- Wood panels are outdoor products

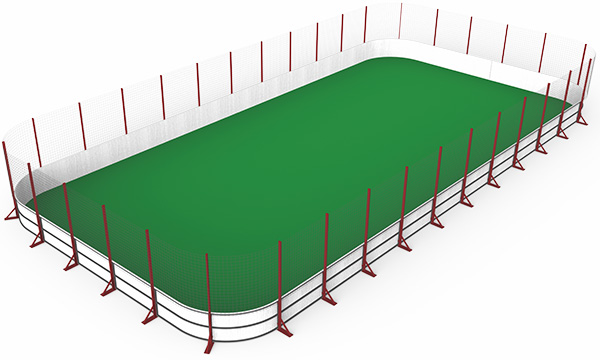

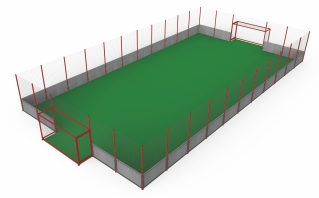

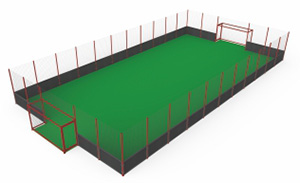

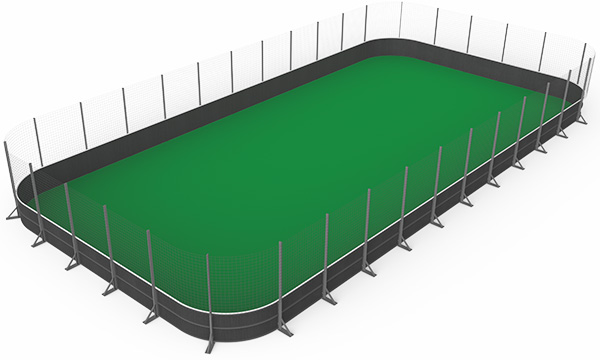

Specification
Stand column:
1. Ordinary small column 76*2.0mm galvanized material, height 1 meter
2. Corner column 76*3.0mm galvanized pipe height 6 meters
3. Lamp post 114*3.0mm height 6 meters galvanized material
4. support 60*2.0mm length 3 meters
Composite board: Grey composite plate 5cm thick * height 1 m, upper and lower U-shaped white frame profile fixed
Rope Mesh: Rope mesh: wire diameter 4.0mm, mesh 10*10cm, height 5 meters, polyethylene material with wire rope color black, rope mesh and composite board using hooks connected
Soccer goal: 3*2 Executive 76*2.5mm galvanized material aide 60*20mm
single-door: 1.5*2 meters high, the door frame selected 60*20mm galvanized pipe
surface treatment: (1) Parabolic + degreasing phosphating + outdoor special high-temperature thermosetting poly cool powder electrostatic spraying; (2) cushion + stretch film packaging

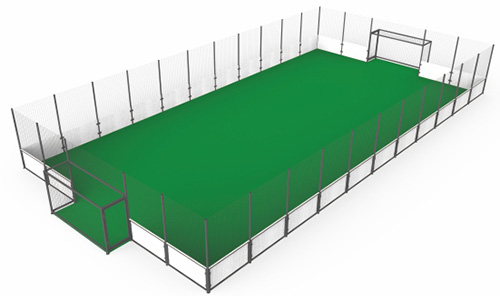

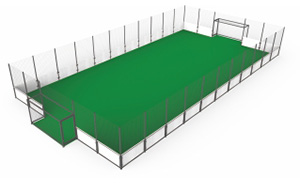

Kit component
Hot dip galvanized steel structure composed of 40 x 40 mm square posts Column 40x80mm and ball court net fence at 3.6m heigh
- 2 handball/football goals 3 m x 2 m with 10 mm cargo net
- polyethylene ball court fencing net, 2 m heigh all around the court above the 1 m panels (total height = 3.6m).
Fencing panels assembled with silent blocks
- PE HD panels 2 x 1m or wooden CTBX panels or PP panels 2 x 1m
- access through 1 side part of the goals
- 1 door 2 x 1 m for easy access to people with reduced mobility.
Cricket field
The four corner columns are 100*100*3.0,
the upper and lower beams are 50*100*3.0mm,
the remaining columns are 50*100*3.0mm,
the frame is 30*50*2.0, the wire diameter is 3.8mm,
and the mesh is 45*45mm.

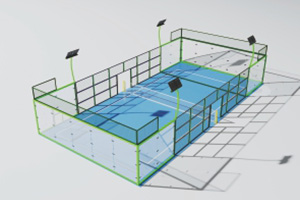

Overall size 20×10 meters
Glass thickness 12mm
The highest point is 4 meters, the rest is 3 meters, and the lamp post is 6 meters
